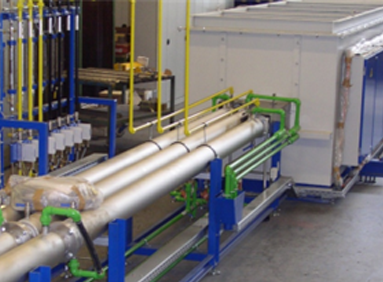

Muffle furnace for stainless steel
MAHLER continuous belt furnace for brazing and annealing high-alloy steels and various other alloys. Hydrogen or forming gas is typically used as the protective gas. The muffle furnace is available in various configurations:
Horizontal design (h)
Crested design (b)
MAHLER continuous belt furnaces with a recessed design are particularly suitable for materials requiring very good atmospheric quality.
Arched design:
- Width: up to 1,000 mm (or upon request)
- Pass-through height: up to 500 mm (or upon request)
- Heating zone length: up to 10,000 mm
- Operating temperature: 500 – 1150°C
- Atmosphere: N₂/H₂ mixed gas or dissociated ammonia
- Heating: electric or gas-fired
Advantages:
- Zoned gas supply for low protective gas consumption
- Suitable for processes with high requirements (e.g., brazing with nickel‑based brazing alloys)
- Heat‑resistant steel muffle for excellent dew point performance
- Very low protective gas consumption
- Extremely stable gas column
- Outstanding temperature uniformity
Horizontal design:
- Width: up to 1,300 mm (or upon request)
- Pass-through height: up to 150 mm (or upon request)
- Heating zone length: up to 10,000 mm
- Operating temperature: 500 – 1150°C
- Atmosphere: N₂/H₂ mixed gas or dissociated ammonia
- Heating: electric or gas-fired
Advantages:
- Zoned gas supply for low protective gas consumption

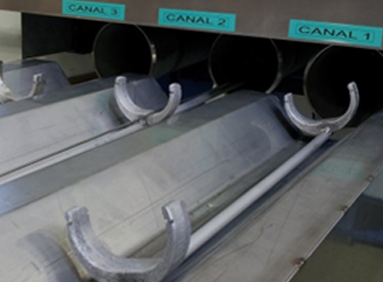

- Suitable for very long parts, e.g., tubes
- Heat‑resistant steel muffle for excellent dew point control
- Very low protective gas consumption
- Extremely stable gas column
- Outstanding temperature uniformity
Technical details
Useful width: up to 1,300 mm (horizontal) or up to 1,000 mm (arched)
Pass-through height: up to 150 mm (horizontal) or up to 500 mm (arched)
Pass-through height: up to 150 mm (horizontal) or up to 500 mm (arched)
Heating zone length up to 10,000 mm
Heating: gas or electric
Process control
Atmosphere: N₂/H₂ gas mixture or dissociated ammonia
Temperature up to 500 - 1150°C
Annealing
Brazing
Additional options – for maximum flexibility and efficiency
With our additional modules, you can upgrade your heat treatment system with intelligent features that enhance process reliability, energy efficiency, and product quality.
Cooling
- Shock cooling for fast and controlled cooling
- Recirculating cooling zone with gas column control for uniform temperature distribution and precise regulation
Dewaxing Zone
- Rapid dewaxing zone for short process times
- Extended dewaxing zone with steel muffle for demanding applications and maximum stability
Peripheral Equipment
- WINCC process visualization for transparent workflows and easy operation
- Cooling-water recirculation system for efficient heat dissipation
- Tempering module for additional heat treatment steps
- Automatic adjustment of door height based on workpiece height
- Automatic protective gas flow adjustment for cost efficiency and process reliability
- Automatic or manual belt length compensation for trouble-free material transport
